ECS Fargate Deployment: Python Hello World Application

Miraclin Technologies•
ECS Fargate Deployment: Python Hello World Application

ECS Fargate Deployment: Python Hello World Application

This guide walks you through deploying a simple Python "Hello World" web application on AWS ECS Fargate — from writing the app to accessing it via a public URL.

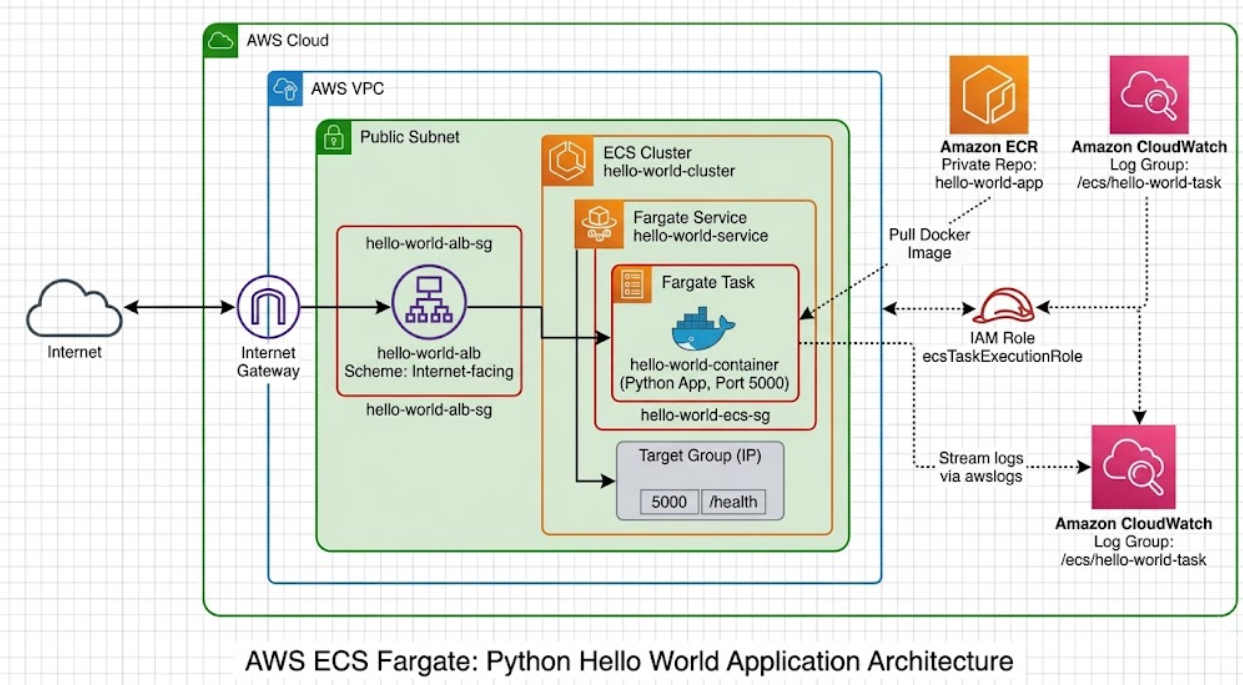

Architecture Overview

                    Internet
                       |
              [Application Load Balancer]
                       |
                  [ECS Service]
                       |
              [Fargate Task(s)]
                       |
              [Python Container]
                (hello-world-app)

What is ECS Fargate?

  • ECS (Elastic Container Service) runs Docker containers on AWS
  • Fargate is the serverless compute engine — no EC2 instances to manage
  • You define what container to run, and AWS handles the infrastructure

Prerequisites

  • AWS account with admin access
  • AWS CLI installed and configured (aws configure)
  • Docker installed locally
  • A terminal (Linux/Mac/WSL)

Step 1: Create the Python Application

Create a project directory:

mkdir hello-world-ecs && cd hello-world-ecs

app.py

from flask import Flask

app = Flask(__name__)

@app.route("/")
def hello():
    return "Hello World from ECS Fargate!"

@app.route("/health")
def health():
    return "OK", 200

if __name__ == "__main__":
    app.run(host="0.0.0.0", port=5000)

requirements.txt

flask==3.1.0

Step 2: Create the Dockerfile

Dockerfile

FROM python:3.12-slim

WORKDIR /app

COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt

COPY app.py .

EXPOSE 5000

CMD ["python", "app.py"]

Test locally (optional)

docker build -t hello-world-app .
docker run -p 5000:5000 hello-world-app
# Visit http://localhost:5000 — should see "Hello World from ECS Fargate!"
# Ctrl+C to stop

Step 3: Create an ECR Repository

ECR (Elastic Container Registry) stores your Docker image so ECS can pull it.

  1. Go to Amazon ECR Console → Repositories → Create repository
  2. Fill in:
    • Visibility: Private
    • Repository name: hello-world-app
  3. Click Create repository

Or via CLI:

aws ecr create-repository --repository-name hello-world-app --region us-east-1

Step 4: Push Docker Image to ECR

  1. Authenticate Docker to ECR:
aws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin <AWS_ACCOUNT_ID>.dkr.ecr.us-east-1.amazonaws.com

Replace <AWS_ACCOUNT_ID> with your 12-digit AWS account ID.

  1. Tag the image:
docker tag hello-world-app:latest <AWS_ACCOUNT_ID>.dkr.ecr.us-east-1.amazonaws.com/hello-world-app:latest
  1. Push the image:
docker push <AWS_ACCOUNT_ID>.dkr.ecr.us-east-1.amazonaws.com/hello-world-app:latest
  1. Verify in the ECR console — you should see the latest tag under your repository.

Step 5: Create an ECS Cluster

  1. Go to ECS Console → Clusters → Create cluster
  2. Fill in:
    • Cluster name: hello-world-cluster
    • Infrastructure: Select AWS Fargate (serverless) only (uncheck EC2 if checked)
  3. Click Create

Step 6: Create a Task Execution Role

ECS needs an IAM role to pull images from ECR and write logs.

  1. Go to IAM Console → Roles → Create role
  2. Trusted entity type: AWS service
  3. Use case: Select Elastic Container Service → Elastic Container Service Task
  4. Click Next
  5. Attach policy: Search and select AmazonECSTaskExecutionRolePolicy
  6. Click Next
  7. Role name: ecsTaskExecutionRole
  8. Click Create role

If ecsTaskExecutionRole already exists in your account, skip this step.

Step 7: Create a Task Definition

The task definition tells ECS what container to run and how.

  1. Go to ECS Console → Task definitions → Create new task definition

  2. Fill in:

    Task definition family: hello-world-task

    Infrastructure requirements:

    • Launch type: AWS Fargate
    • Operating system/Architecture: Linux/X86_64
    • CPU: 0.25 vCPU
    • Memory: 0.5 GB
    • Task execution role: Select ecsTaskExecutionRole

  3. Container - 1:

    • Name: hello-world-container
    • Image URI: <AWS_ACCOUNT_ID>.dkr.ecr.us-east-1.amazonaws.com/hello-world-app:latest
    • Container port: 5000
    • Protocol: TCP
    • Port name: hello-world-port (or leave auto-generated)

  4. Expand Logging (should be enabled by default with awslogs):

    • Log group: /ecs/hello-world-task (auto-created)

  5. Click Create

Step 8: Create a Security Group for the Service

  1. Go to VPC Console → Security Groups → Create security group
  2. Fill in:
    • Name: hello-world-ecs-sg
    • Description: Allow HTTP traffic to ECS tasks
    • VPC: Select your default VPC
  3. Inbound rules → Add rule:
    • Type: Custom TCP
    • Port range: 5000
    • Source: 0.0.0.0/0 (allows public access)
  4. Outbound rules: Leave default (all traffic allowed)
  5. Click Create security group

Step 9: Create the ECS Service

The service keeps your task running and connects it to networking.

  1. Go to ECS Console → Clusters → Select hello-world-cluster

  2. Under Services tab → Click Create

  3. Fill in:

    Environment:

    • Compute options: Launch type
    • Launch type: FARGATE

    Deployment configuration:

    • Application type: Service
    • Task definition family: hello-world-task
    • Revision: LATEST
    • Service name: hello-world-service
    • Desired tasks: 1

  4. Expand Networking:

    • VPC: Select your default VPC
    • Subnets: Select at least one public subnet
    • Security group: Remove default, select hello-world-ecs-sg
    • Public IP: Turned on (required for Fargate tasks in public subnets to pull images)

  5. Click Create

Step 10: Access Your Application

  1. Go to ECS Console → Clusters → hello-world-cluster → Services → hello-world-service
  2. Click the Tasks tab
  3. Click the running task ID
  4. Under Configuration, find the Public IP
  5. Open in browser:
http://<TASK_PUBLIC_IP>:5000

You should see: Hello World from ECS Fargate!

(Optional) Step 11: Add an Application Load Balancer

For production use, add an ALB for a stable DNS endpoint and health checks.

Create a Target Group

  1. Go to EC2 Console → Target Groups → Create target group
  2. Fill in:
    • Target type: IP addresses
    • Name: hello-world-tg
    • Protocol: HTTP
    • Port: 5000
    • VPC: Default VPC
    • Health check path: /health
  3. Click Next → Create target group (don't register targets manually — ECS does this)

Create the ALB

  1. Go to EC2 Console → Load Balancers → Create load balancer
  2. Select Application Load Balancer → Create
  3. Fill in:
    • Name: hello-world-alb
    • Scheme: Internet-facing
    • IP address type: IPv4
    • VPC: Default VPC
    • Mappings: Select at least 2 availability zones
    • Security group: Create or select one allowing HTTP port 80 inbound
    • Listener: HTTP : 80 → Forward to hello-world-tg
  4. Click Create load balancer

Update the ECS Service

  1. Go to ECS Console → hello-world-cluster → hello-world-service → Update
  2. Under Load balancing:
    • Load balancer type: Application Load Balancer
    • Load balancer: hello-world-alb
    • Container: hello-world-container : 5000
    • Target group: hello-world-tg
  3. Click Update

Now access your app via the ALB DNS name (found in the Load Balancer details):

http://hello-world-alb-xxxxxxxx.us-east-1.elb.amazonaws.com

Viewing Logs

  1. Go to CloudWatch Console → Log groups → /ecs/hello-world-task
  2. Click the latest log stream to see Flask output

Or via CLI:

aws logs tail /ecs/hello-world-task --follow

Quick Verification Checklist

  • Python app runs locally with Docker on port 5000
  • Docker image pushed to ECR repository hello-world-app
  • ECS cluster hello-world-cluster created (Fargate)
  • Task execution role ecsTaskExecutionRole exists with correct policy
  • Task definition hello-world-task created with correct image URI and port
  • Security group allows inbound TCP on port 5000
  • ECS service running with 1 desired task
  • Task has a public IP and app is accessible at http://<IP>:5000
  • (Optional) ALB forwards port 80 to target group on port 5000

Cleanup

Delete in this order:

  1. ECS Service: Set desired tasks to 0, then delete the service
  2. ECS Cluster: Delete hello-world-cluster
  3. Task Definition: Deregister hello-world-task
  4. ECR Repository: Delete hello-world-app (and its images)
  5. Load Balancer: Delete hello-world-alb (if created)
  6. Target Group: Delete hello-world-tg (if created)
  7. Security Group: Delete hello-world-ecs-sg
  8. IAM Role: Keep ecsTaskExecutionRole (reusable) or delete if no longer needed
  9. CloudWatch Log Group: Delete /ecs/hello-world-task

Common Troubleshooting

Issue Solution
Task keeps stopping Check CloudWatch logs for Python errors; verify image URI is correct
Can't pull image from ECR Ensure task execution role has AmazonECSTaskExecutionRolePolicy; verify public IP is enabled
Health check failing Confirm /health endpoint returns 200; check security group allows traffic on port 5000
Can't access public IP Verify security group inbound rule; ensure task is in a public subnet with public IP enabled
ALB returns 502 Target group health check failing; check port mapping matches (5000)
